About Us
Building quality, affordable aircraft that dominate the African bush
Savannah Aircraft Africa
Founded by the late John Waterson in 2006 on the Waterson’s Etna Farm just outside East London. John started off as an amateur builder but the keen market interest shown in Savannah soon pushed an amateur building enterprise into a CAA approved production facility producing aircraft for South Africa, Central African Republic, DRC, Tanzania, Zambia, Malawi, Mozambique, Namibia, Botswana, Swaziland and Zimbabwe. John Waterson was a consummate professional, a passionate aviator and a great friend to many in the aviation community.
COMPARE AIRCRAFT
Details

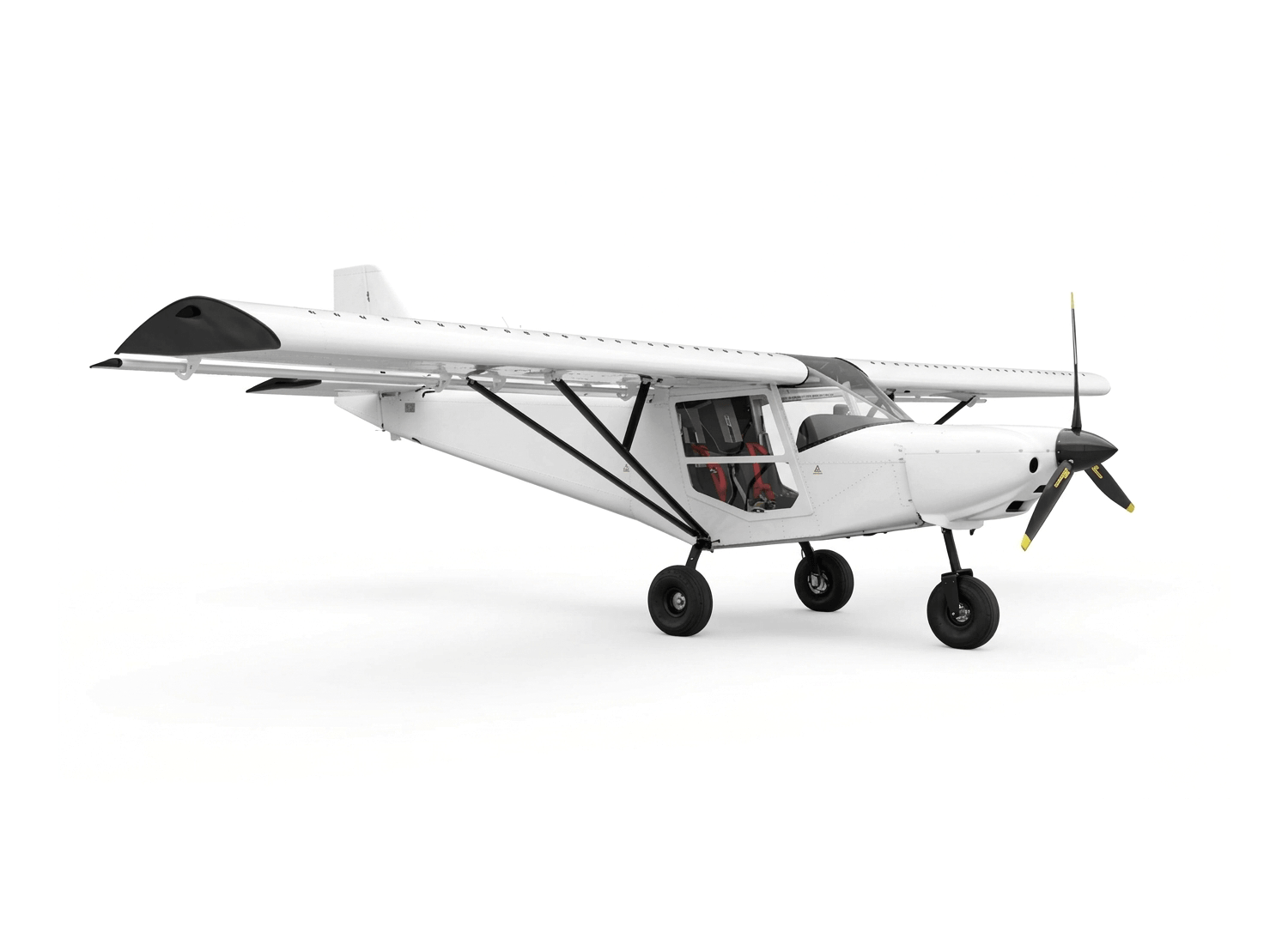

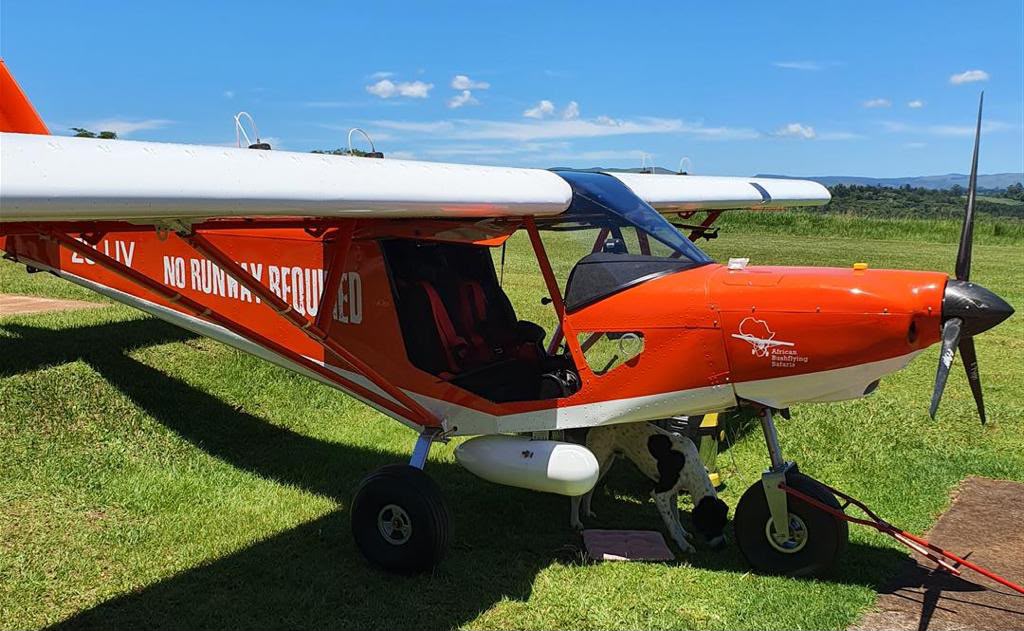

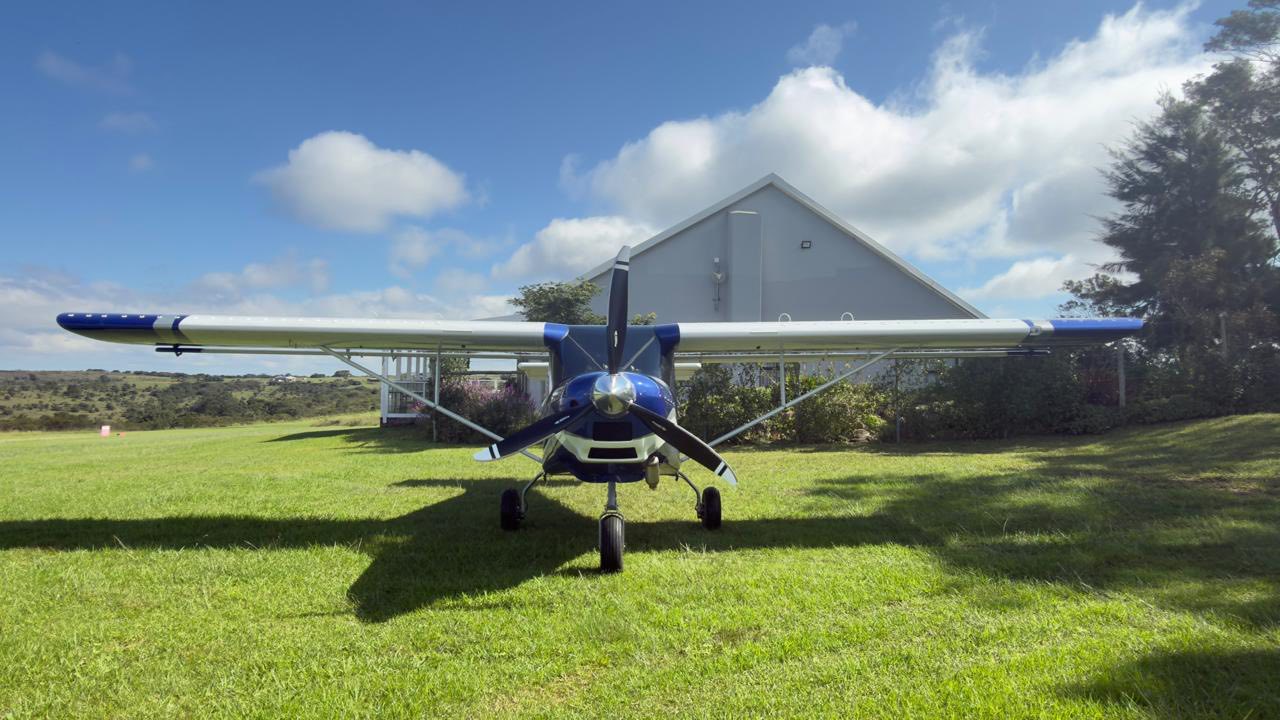

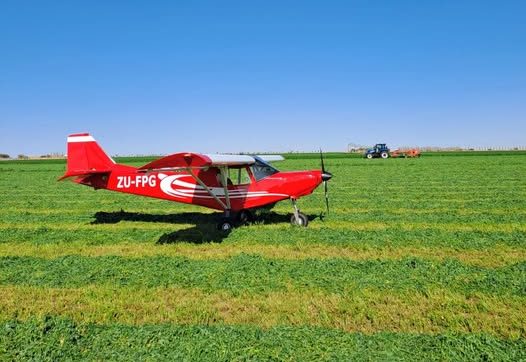

Savannah S
Ventura 4
EMPTY WEIGHT
300KGS
400KGS
MAX TAKE-OFF WEIGHT
600KGS
800KGS
SEATS
2 SEATER
4 SEATER
WING LOAD FACTOR
+6 / -4
+3.8 / -1.5
ENGINE
Rotax 912ULS 100hp Twin Carburettor Normal Aspiration OR
912is Fuel Injected 100hp.
Rotax 915is 140hp Turbo charged fuel injected OR
916is 160HP Turbo Charged, fuel injected.
FUEL TYPE
Mogas Unleaded 95/Avgas 100LL
Mogas Unleaded 95/Avgas 100LL
FUEL CONSUMPTION
@ 5000 Rpm- 18 Litres per hour
@ 5000 Rpm- 25 Litres per hour
FUEL CAPACITY (LONG RANGE TANKS)
152 Litres
160 Litres
ENDURANCE @5000 RPM
8 Hours With Reserve
6 Hours With Reserve
PROPELLER
eProp Durandal 100 series 3 blade ground adjustable pitch
OR
DUC Swirl – 3 blade carbon fibre
Airmaster 3 blade Electric Variable pitch constant speed OR Hydraulic MT 34 Variable Pitch constant speed.
Landing Ground Roll MAUW – Grass
50 m
150 m
Take off Ground Roll MAUW – Grass
35 m
100 m
Cruise tas
100 mph
120 mph
Max cruise speed tas
115 mph
155 mph
Aerodynamic Stall speed MAUW(no flap)
35 mph
40 mph
Aerodynamic Stall speed MAUW(Full flap)
30 mph
38 mph
never exceed speed
143 mph
162 mph
cabin width
1.09 Meters
1.16 Meters
