About Us

Building quality, affordable aircraft that dominate the African bush

Savannah Aircraft Africa

Founded by the late John Waterson in 2006 on the Waterson’s Etna Farm just outside East London. John started off as an amateur builder but the keen market interest shown in Savannah soon pushed an amateur building enterprise into a CAA approved production facility producing aircraft for South Africa, Central African Republic, DRC, Tanzania, Zambia, Malawi, Mozambique, Namibia, Botswana, Swaziland and Zimbabwe. John Waterson was a consummate professional, a passionate aviator and a great friend to many in the aviation community.

COMPARE AIRCRAFT

Details

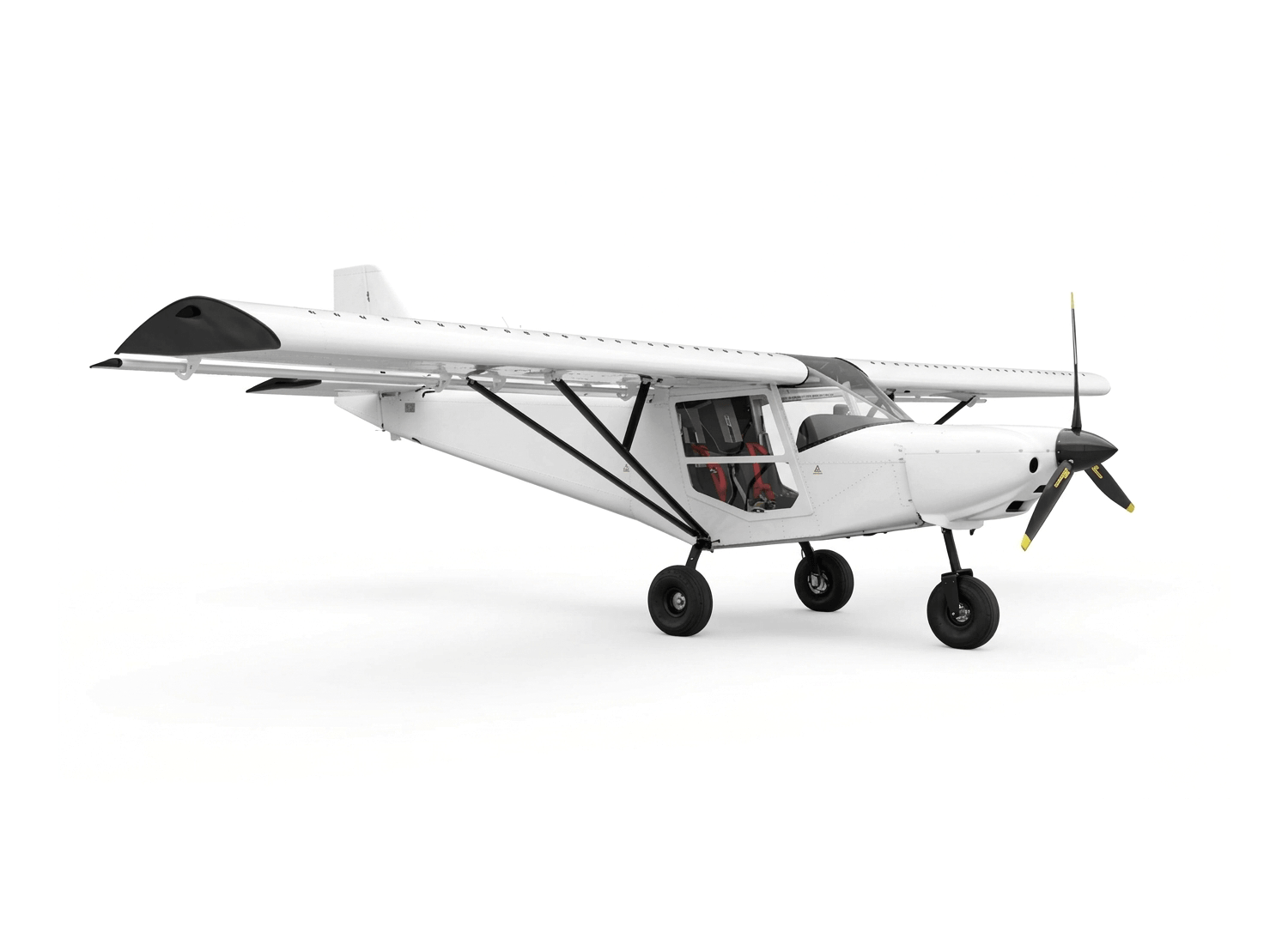

Savannah S

Ventura 4



Build your own – customise to your desire

approx price ready to fly

US$ 65,000.00

US$115,000.00

EMPTY WEIGHT

300KGS

400KGS

MAX TAKE-OFF WEIGHT

600KGS

800KGS

SEATS

2 SEATER

4 SEATER

WING LOAD FACTOR

+6 / -4

+3.8 / -1.5

ENGINE

Rotax 912ULS 100hp Twin Carburettor Normal Aspiration OR
912is Fuel Injected 100hp.

Rotax 915iS 141hp Turbo charged OR
914UL 115HP Turbo Charged

FUEL TYPE

Mogas Unleaded 95/Avgas 100LL

Mogas Unleaded 95/Avgas 100LL

FUEL CONSUMPTION

@ 5000 Rpm- 18 Litres per hour

@ 5000 Rpm- 25 Litres per hour

FUEL CAPACITY (LONG RANGE TANKS)

152 Litres

160 Litres

ENDURANCE @5000 RPM

8 Hours With Reserve

6 Hours With Reserve

PROPELLER

eProp Durandal 100 series 3 blade ground adjustable pitch
OR
DUC Swirl – 3 blade carbon fibre

Airmaster 3 blade Electric Variable pitch constant speed
OR
AX Sport AX3R Variable pitch constant speed.

Landing Ground Roll MAUW – Grass

50 Meters

150 Meters

Take off Ground Roll MAUW – Grass

35 Meters

100 Meters

Cruise tas

100 mph

120 mph

Max cruise speed tas

115 mph

155 mph

Aerodynamic Stall speed MAUW(no flap)

35 mph

40 mph

Aerodynamic Stall speed MAUW(Full flap)

30 mph

38 mph

never exceed speed

143 mph

162 mph

cabin width

1.09 Meters

1.16 Meters
